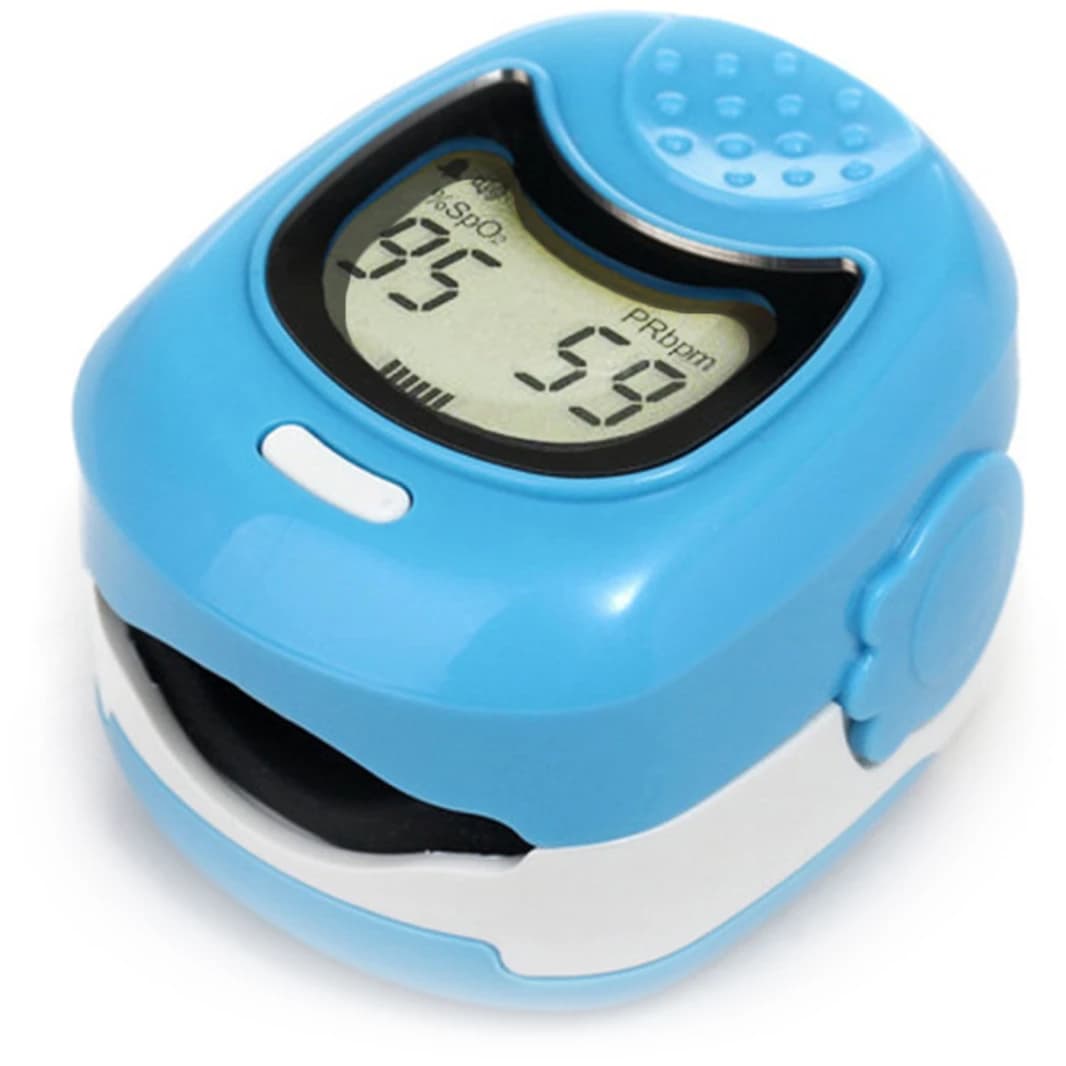

Introduction The principle of the CMS50QA Pulse Oximeter is as follows: Photoelectric Oxyhemoglobin Inspection Technology is adopted in accordance with Capacity Pulse Scanning & Recording Technology, the Pulse Oximeter can be used in measuring the pulse oxygen saturation and pulse rate through finger. The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc

Features Ergonomic design without sharp edges to help avoid injury to the child
LCD display with multiple display modes
Heartbeat displayed as bar graph or waveform
Auditory alarm for when readings exceed preset specifications
Heartbeat tracking sound
Indicator for low power
Automatic shut-off for when no finger is detected

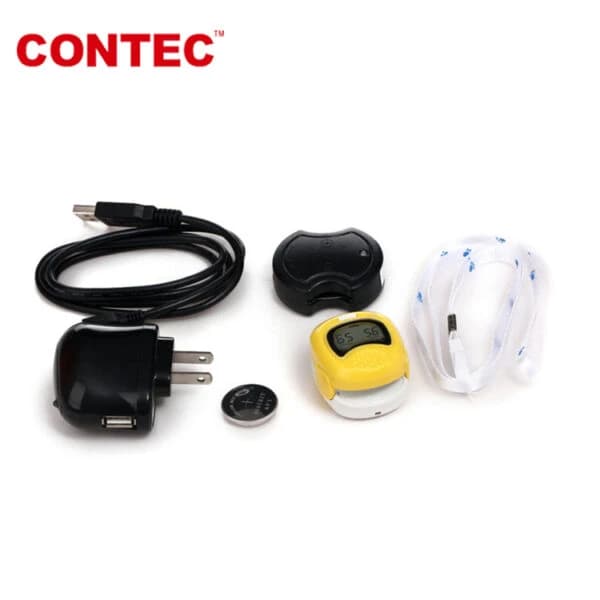

Package Includes CMS-50QA Pediatric Finger Pulse Oximeter Unit (LCD) Rechargeable Battery (Installed) with USB PC/wall charger Neck/Wrist cord Instruction manual

Extended Specifications Measurement of SpO2 Measuring range: 0%～99% Accuracy: When the SpO2 measuring range is 70%～99%, the permission of absolute error is ±2%; Below 70% unspecified Measuring range:30bpm～250bpm Accuracy: ±2 bpm or ±2% (select larger) Power supply requirement 3.6 V DC ~ 4.2V DC Rechargeable Battery Resolution SpO2 : 1%, Pulse rate: 1bpm Measurement Performance in Weak Filling Condition: SpO2 and pulse rate can be shown correctly when the pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2%. Resistance to surrounding light. The deviation between the value measured in the condition of man-made light or indoor natural light and that of the darkroom is less than ±1%.
