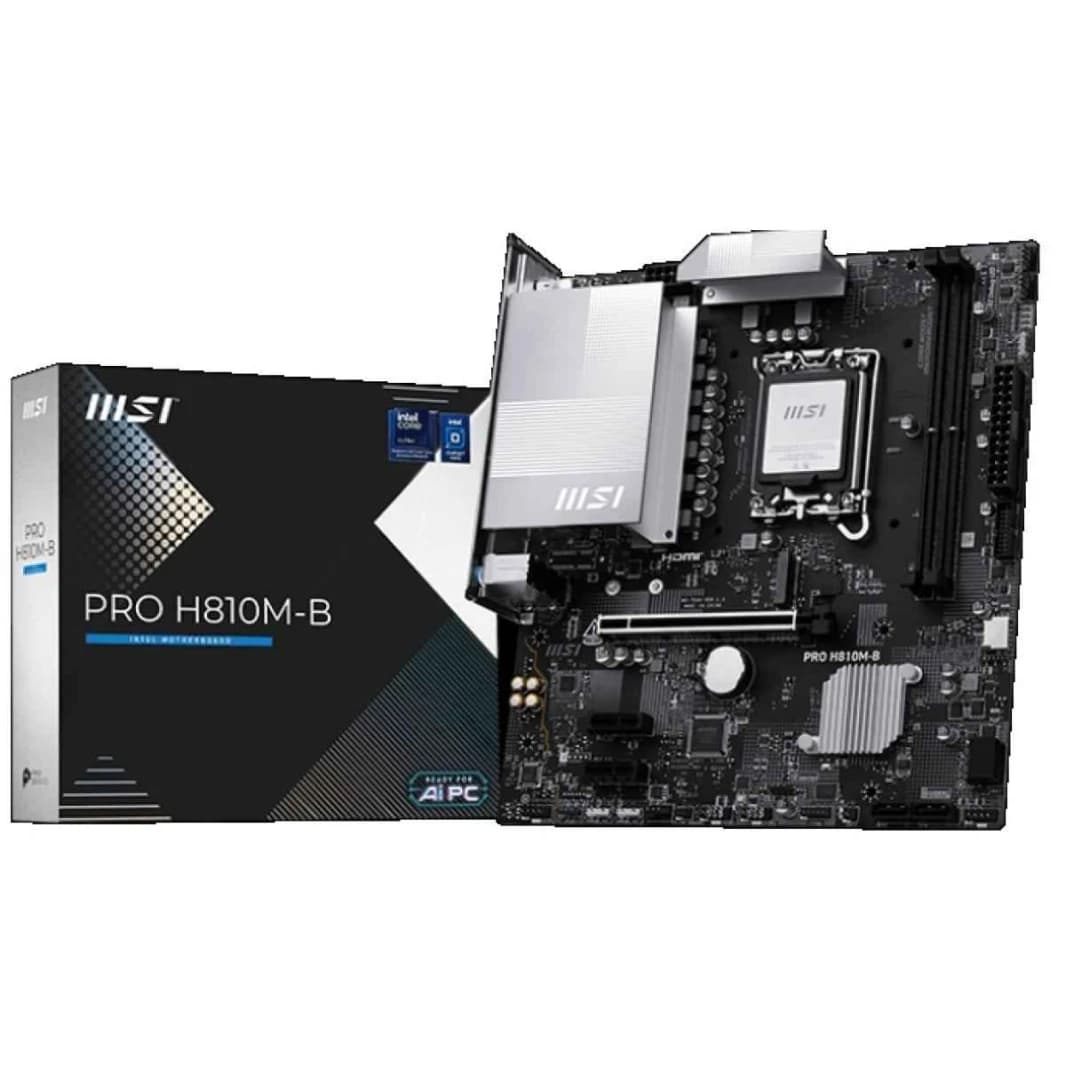

The motherboard is designed to support Intel® Core™ Ultra Processors (Series 2) with the LGA 1851 socket. It features the Intel® H810 chipset and offers two DDR5 UDIMM memory slots, allowing up to 128GB of memory. It supports DDR5 memory ranges from 6400 to 4800 MT/s according to JEDEC standards, with maximum overclocking frequencies of 6400 MT/s depending on configuration. The board also supports Intel® POR, JEDEC speeds, Intel® XMP 3.0, dual-controller, dual-channel mode, and non-ECC un-buffered memory.

For connectivity, it provides various ports including DisplayPort, USB 2.0, USB 5Gbps Type-A, 2.5G LAN, and HDMI™ audio connectors. The motherboard follows the mATX form factor and includes M.2 slots for expansion. It also has expansion slots comprising one PCI-E x16 slot and two PCI-E x1 slots. The PCI_E1 Gen PCIe 5.0 supports up to x16 from the CPU, while PCI_E2 and PCI_E3 Gen PCIe 4.0 support up to x1 from the chipset.
