Overview

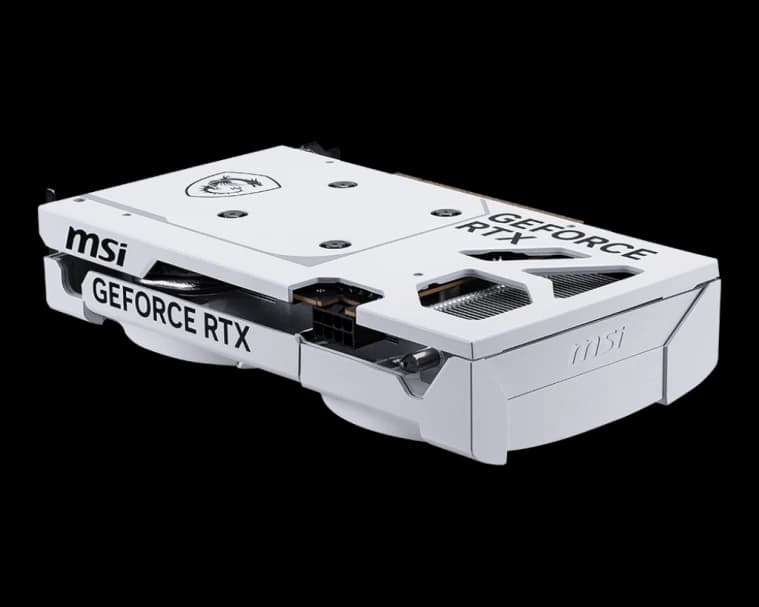

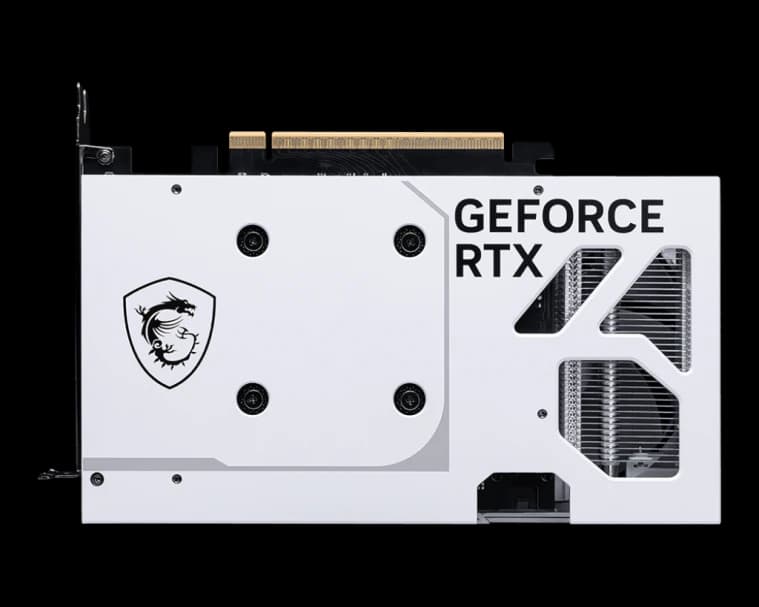

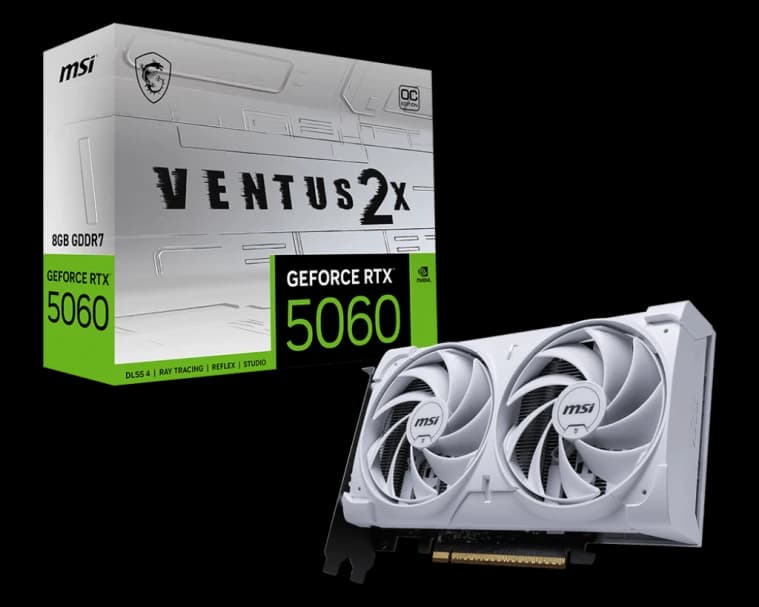

The RTX 5060 VENTUS 2X OC White is MSI’s minimalist take on mid-range power, featuring 8GB of ultra-fast GDDR7 memory, DLSS 4, and a PCIe 5.0 x8 interface. With a compact dual-slot design and TORX Fan 5.0 cooling, it’s ideal for 1080p and 1440p gaming, streaming, and creative workflows. The white shroud blends seamlessly into themed builds and minimalist setups.

️ Key Features

• NVIDIA Blackwell Architecture
  • 4th-gen RT cores for full ray tracing
  • 5th-gen Tensor cores for DLSS 4 and FP4 AI acceleration
  • Neural rendering for cinematic realism
• DLSS 4 with Multi Frame Generation
  • Boosts FPS and image quality using AI
  • Enhanced ray reconstruction and super resolution
• TORX Fan 5.0 Cooling System
  • Ring arc blades stabilize airflow
  • Nickel-plated copper baseplate and square core pipes for efficient heat transfer
• PCIe Gen 5 x8 Interface
  • High bandwidth with future-proof compatibility
  • Supports up to 7680×4320 resolution
• MSI Center & NVIDIA Studio Support
  • Real-time performance tuning and monitoring
  • Optimized for creative workflows like video editing and 3D rendering

Specifications

• GPU Architecture: NVIDIA Blackwell
• CUDA Cores: 3840
• Memory: 8GB GDDR7
• Memory Bus: 128-bit
• Memory Speed: 28 Gbps
• Boost Clock: Up to 2535 MHz
• Interface: PCIe 5.0 x8

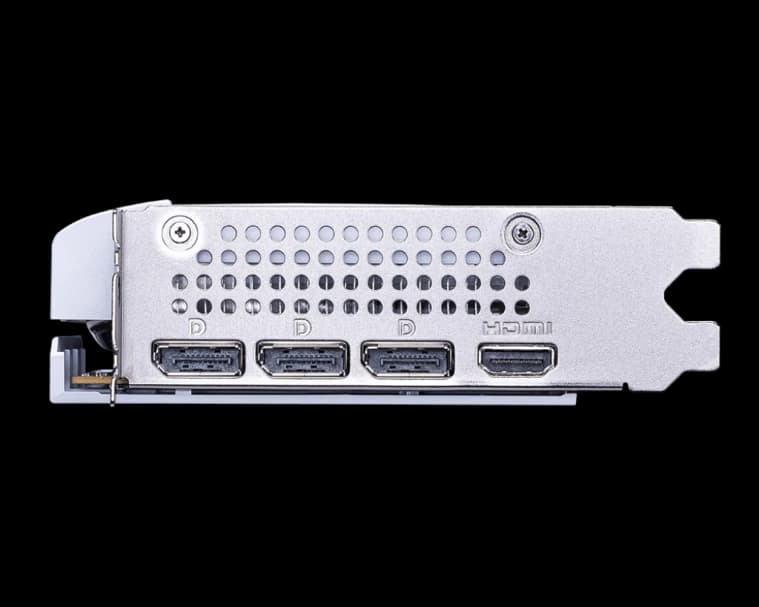

• Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b
• Max Resolution: 7680×4320
• FP32 Performance: ~19.4 TFLOPS
• Cooling: Dual-fan TORX 5.0
• Dimensions: ~241mm × 120mm × 41mm
• TDP: 145W
• Power Connector: 1× 8-pin
• Color: Matte White

Why It’s a Smart Choice

• AI-enhanced gaming with DLSS 4 and Reflex 2
• Efficient dual-fan cooling for compact builds
• Ready for creators with NVIDIA Studio tools
• Future-proof PCIe 5.0 interface
• Clean white aesthetic for themed builds
