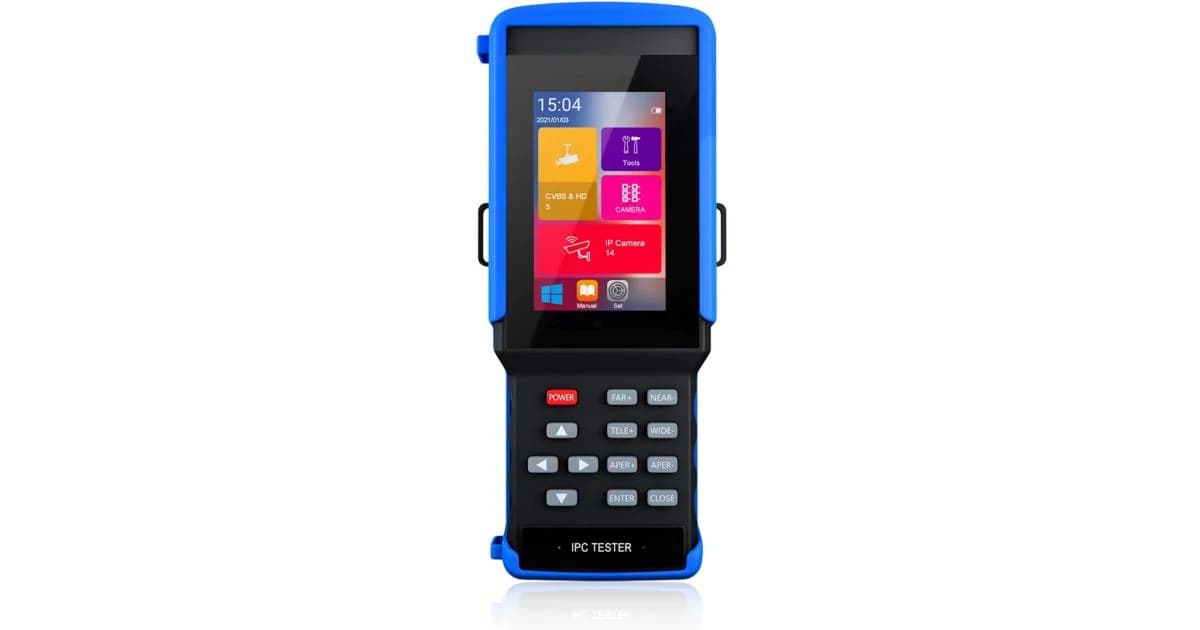

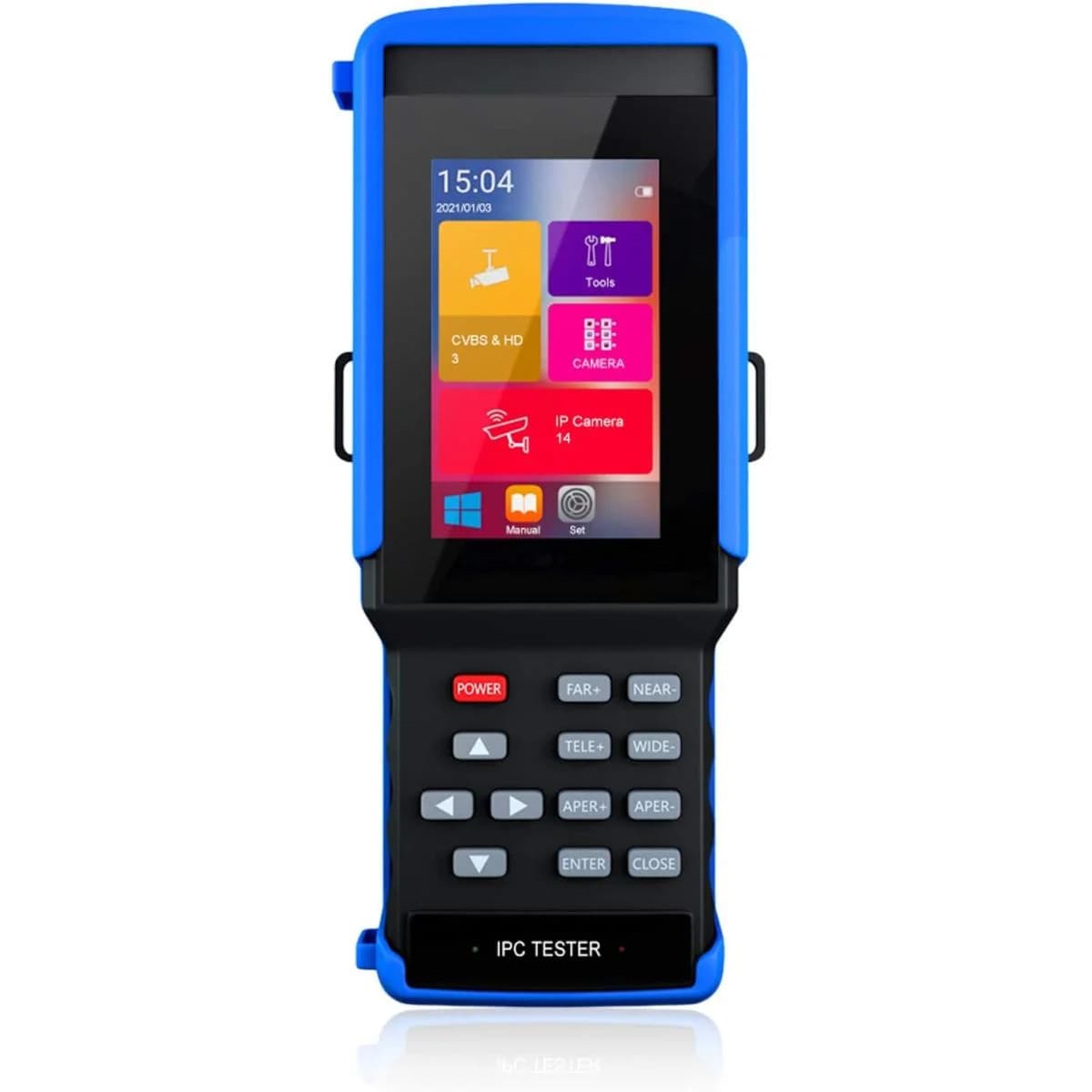

IPC9310 Plus 4K 8MP AHD CVI TVI CVB IP Camera Test

• Landscape and portrait screens make the viewer bigger, clearer, and more intuitive.
• Capacitive touch + button + virtual mouse, multiple optional operations.
• Support 4K H265/H264/MPEG4/MPEG mainstream video live.
• Speedy IP discovery, faster, more accurate, full-segment IP blind testing, smart recognition camera start is completed or not.
• One-click video views the camera seconds and compatibly.
• Speed ONVIF can modify camera IP image parameters, stream, and resolution.
• The ONVIF server can be used as a network ONVIF camera, batch modify IP, and support modifying the channel name.
• Portable operating IC manufacturers software.
• Support camera proprietary protocol customization or tsp protocol.
• Built-in wireless WIFI function, can test wireless network camera, network update software.
• ALL videos can be photographed, recorded, and played back.
• CVBS analog video image display, PT pan-tilt control, image zoom, camera, video, playback. 12V 3A High Current DC Power Supply.
• Supports standard PoE power supply, conforms to IEEE802.3at(25.5W) standard.
• Support network line test, test network line break, and line sequence.
• Support network cable DR breakpoint quality detection, can detect network cable attenuation, impedance, reflectivity, and delay offset.
• Support coaxial HD AHD/TVI/VI, maximum support 8M, support coaxial camera control to call camera menu.
• Support lens simulation function and security tools.
• Support focus detection, and image quality detection, for camera focus debugging.
