Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.

Specifications:
- CPU: LGA1851 socket; Supports Intel® Core™ Ultra Processors; L3 cache varies by CPU
- Chipset: Intel® B860 Express Chipset
- Memory: DDR5 9066(O.C) down to 5600 MT/s; 4× DIMM sockets; up to 256 GB; Dual channel Supports ECC/non-ECC Un-buffered DIMMs; XMP support
- Onboard Graphics: Intel® HD Graphics (CPU-dependent); 1× HDMI (4096×2160@60Hz); 2× DisplayPort (3840×2160@144Hz) HDMI 2.1, DisplayPort 2.1, HDCP 2.3; Triple-display support
- Audio: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- LAN: Realtek® 2.5GbE LAN chip (2.5G/1G/100Mbps)
- Expansion Slots: 1× PCIe x16 (CPU, PCIe 5.0); 2× PCIe x16 (Chipset, PCIe 4.0 x1)
- Storage Interface: 1× M.2 (CPU, PCIe 5.0 x4/x2); 1× M.2 (Chipset, PCIe 4.0 x4/x2); 4× SATA 6Gb/s RAID 0/1/5/10 support for SATA
- USB Ports: 1× USB 3.2 Gen 2 Type-A (rear); 4× USB 3.2 Gen 1 (2 rear, 2 internal); 1× USB Type-C® (USB 3.2 Gen 1, internal); 7× USB 2.0/1.1 (3 rear, 4 internal)
- Internal I/O: 24-pin ATX, 8-pin ATX 12V; CPU/system fan headers; RGB headers; M.2 & SATA ports Front panel/audio headers; USB headers; TPM header; Q-Flash Plus button; Reset jumper; Clear CMOS jumper

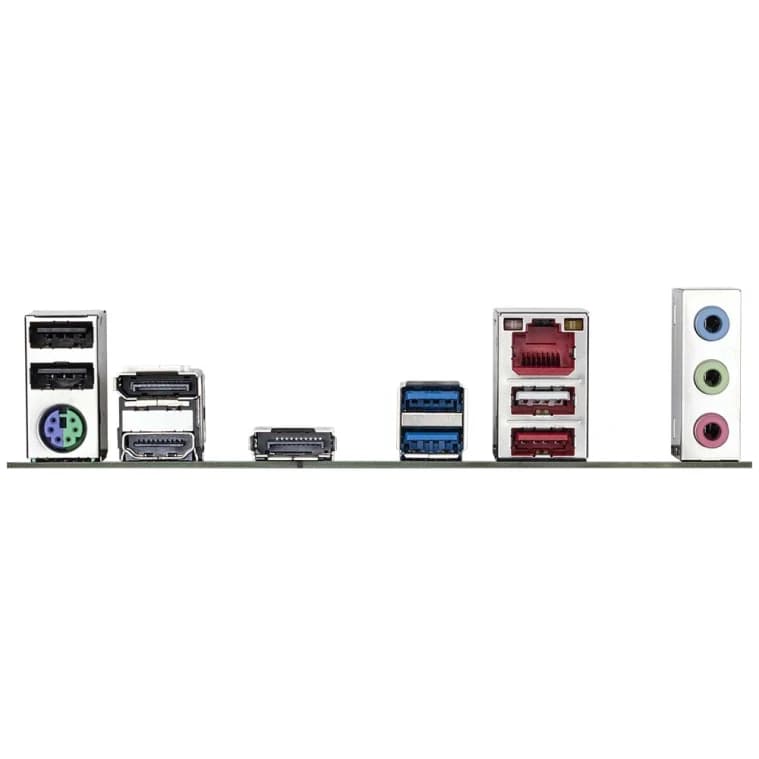

- Back Panel I/O: PS/2 port, HDMI, 2× DisplayPort, USB ports, RJ-45, 3× audio jacks
- I/O Controller: iTE® I/O Controller Chip
- H/W Monitoring: Voltage, temperature, fan speed, water flow detection; Fan fail warning/control
- BIOS: 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features: GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus; Smart Backup
- Operating System: None
- Form Factor: Micro ATX; 24.4 cm × 24.4 cm
