Overview

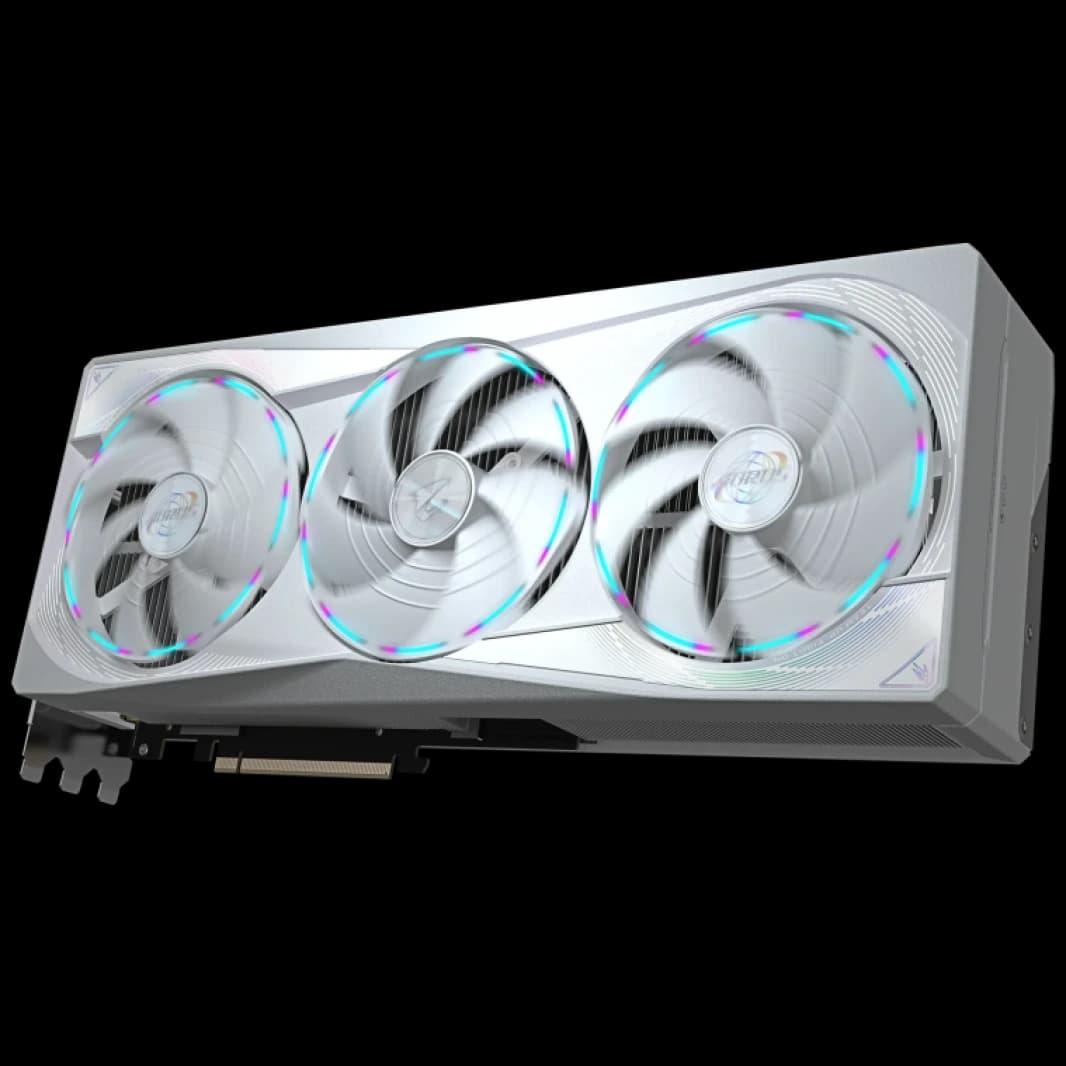

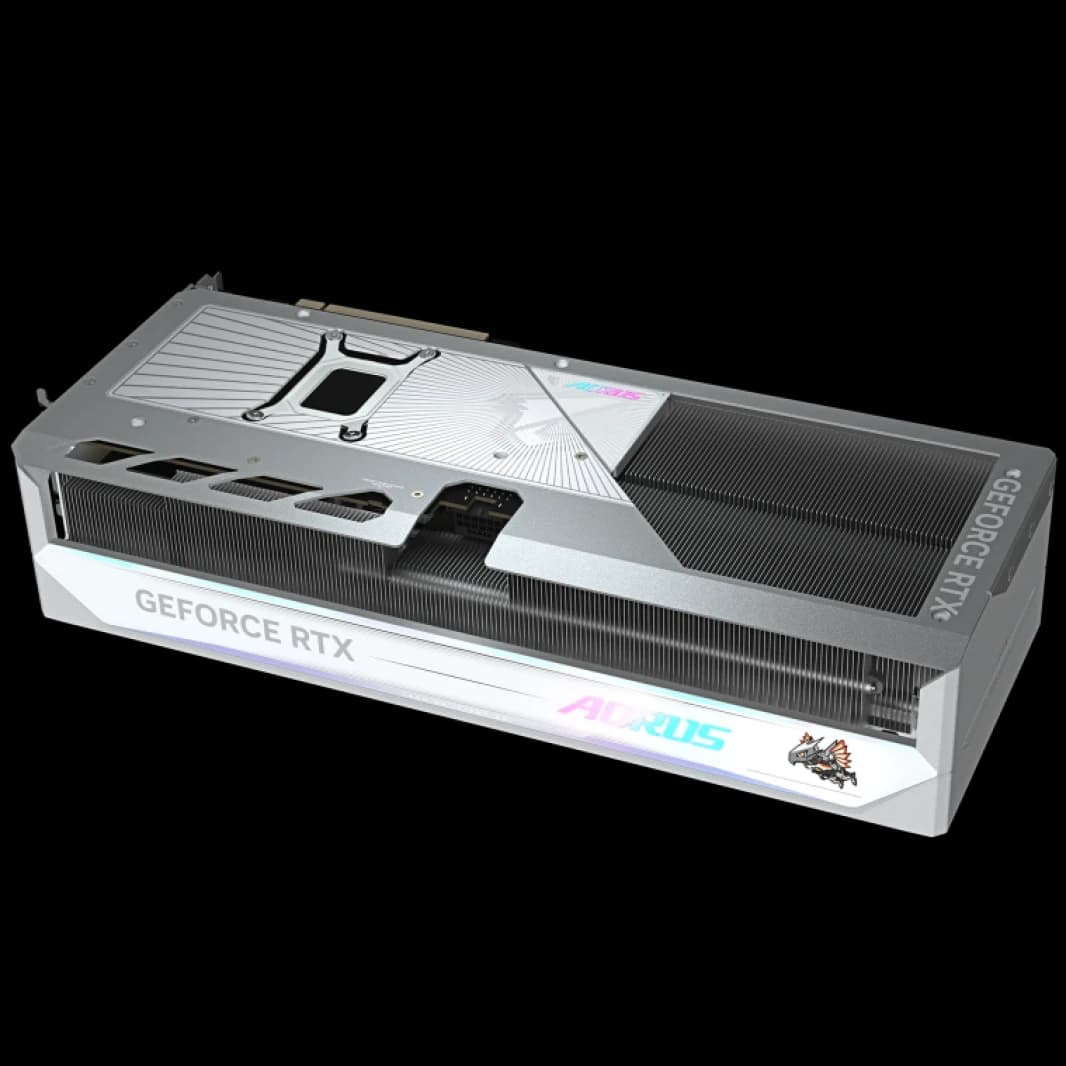

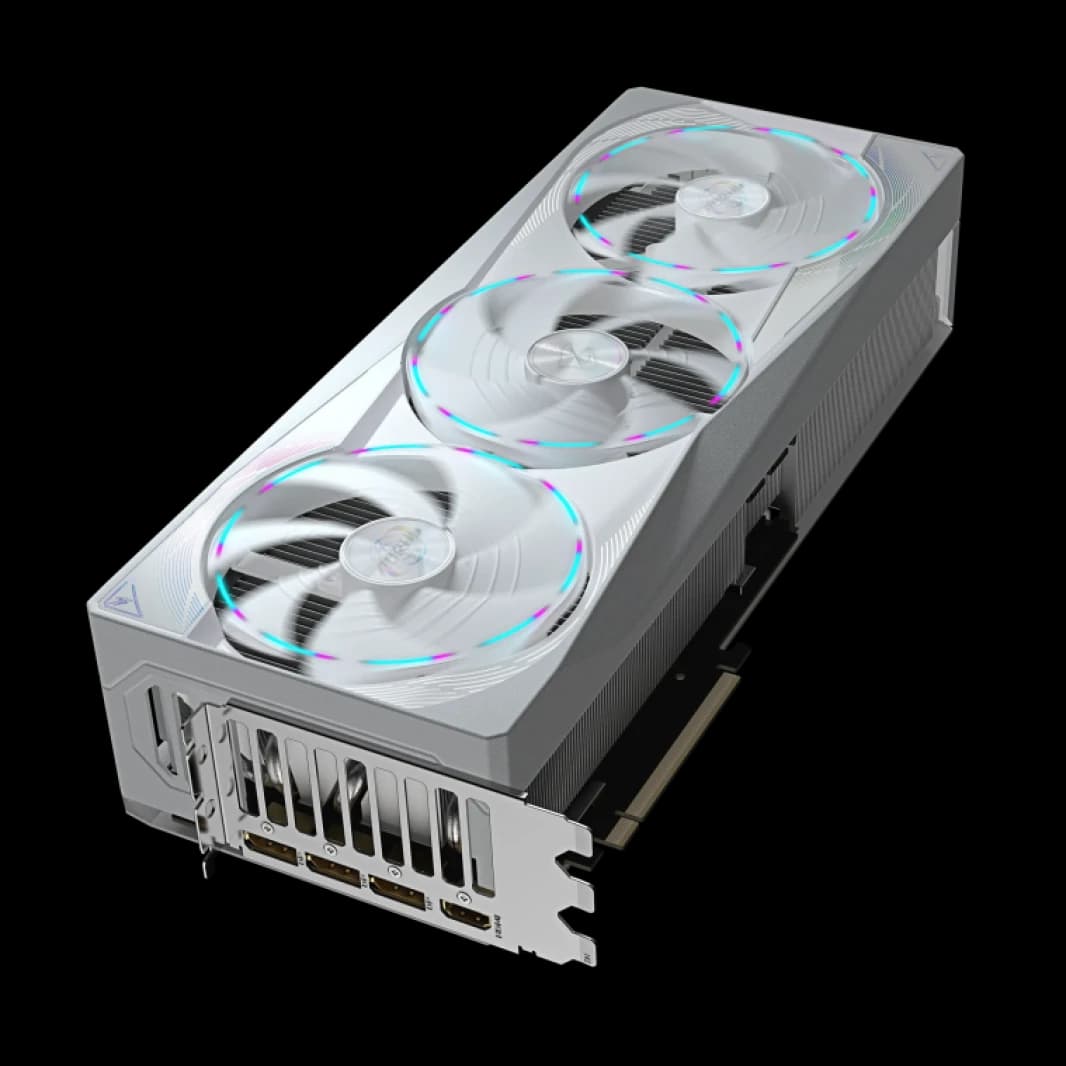

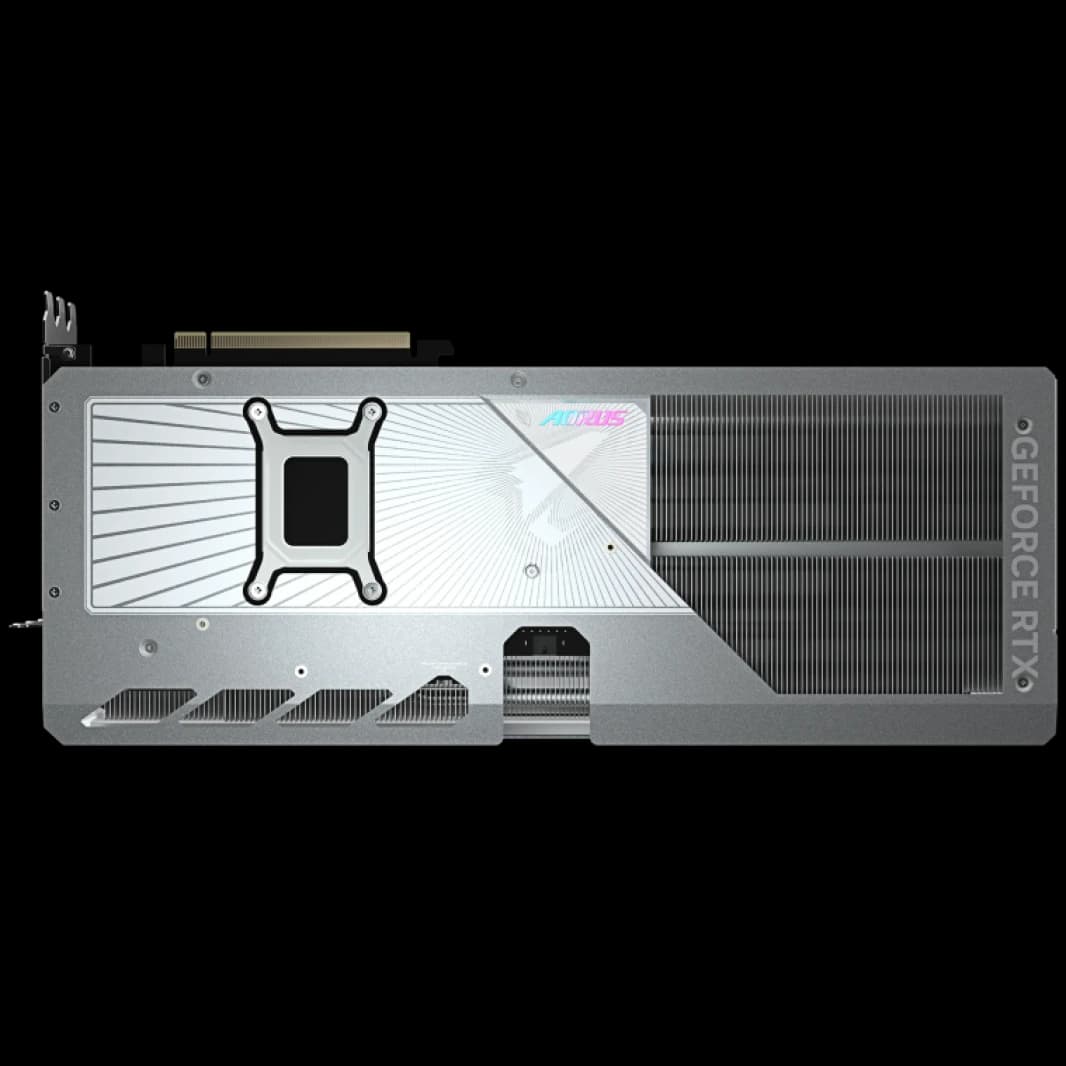

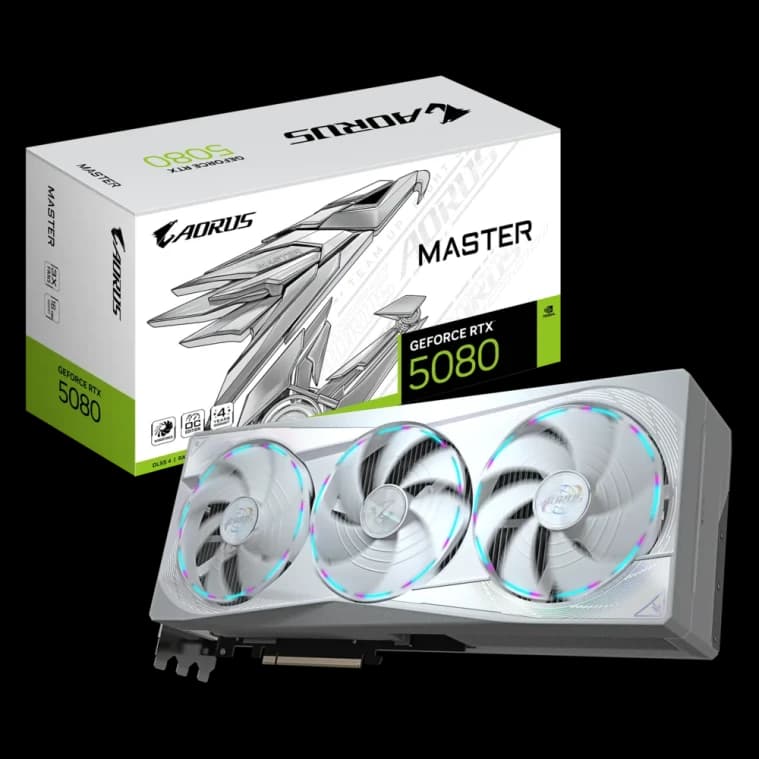

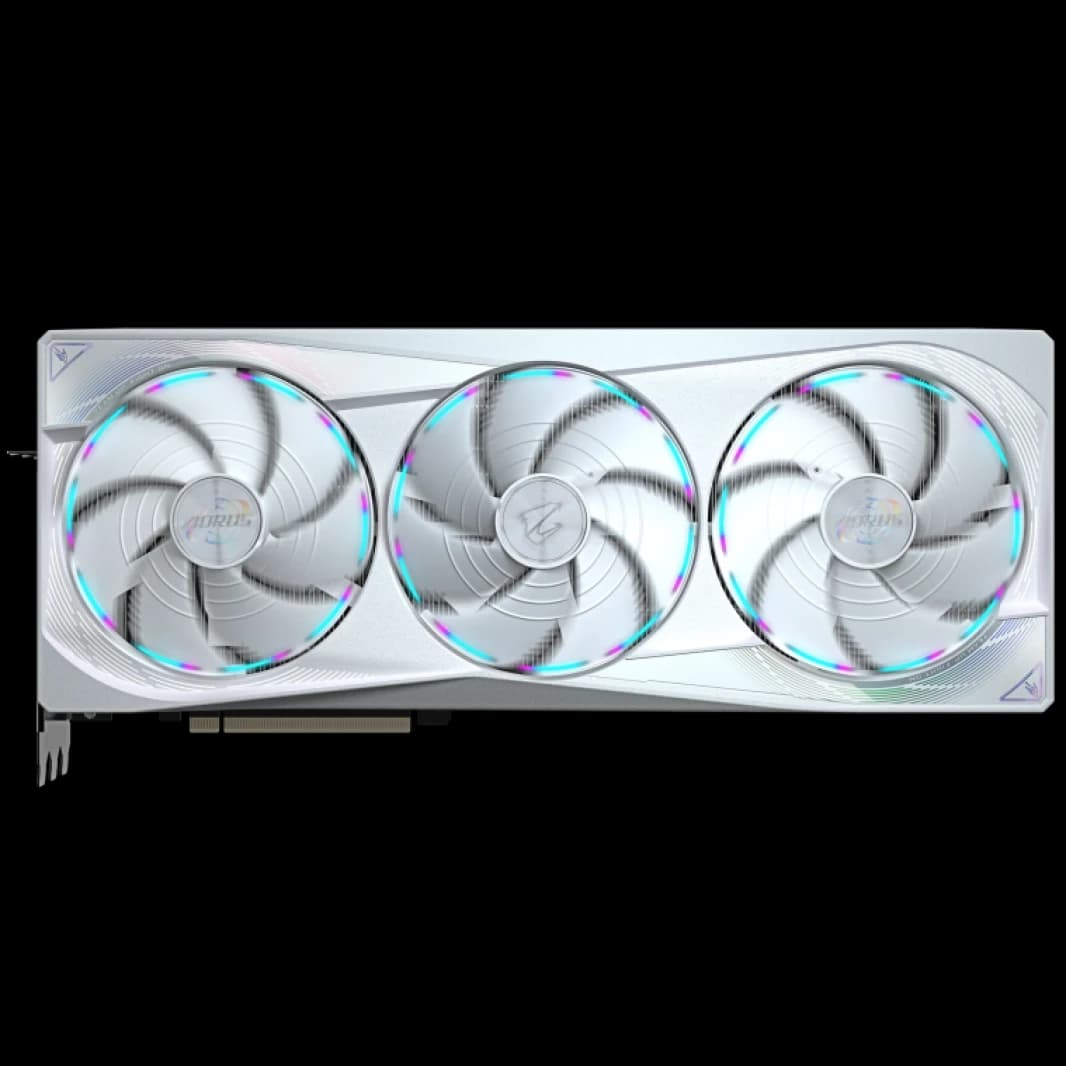

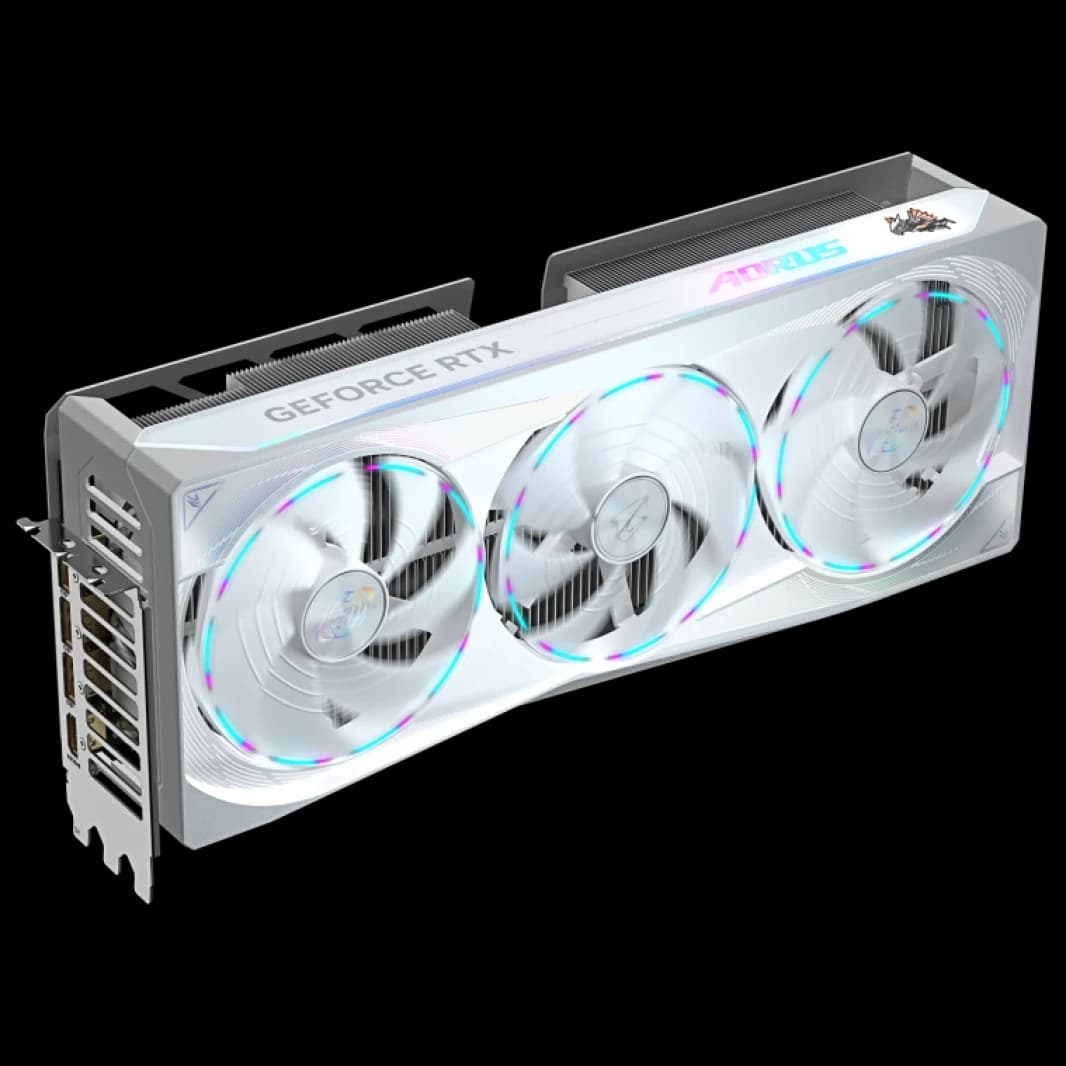

The RTX 5080 MASTER ICE is part of GIGABYTE’s AORUS premium lineup, featuring 16GB of ultra-fast GDDR7 memory, DLSS 4, Ray Tracing, and NVIDIA Reflex 2. With 10,752 CUDA cores and a 256-bit memory bus, it delivers exceptional 4K and AI performance, wrapped in a stunning white design with RGB Halo lighting and advanced cooling.

Feature Highlights

• NVIDIA Blackwell Architecture (GB203)
• 10,752 CUDA cores
• 84 SMs, 336 Tensor Cores (5th Gen), 84 RT Cores (4th Gen)
• Built on TSMC 5nm process
• 16GB GDDR7 Memory @ 30 Gbps
• 256-bit interface
• 960 GB/s bandwidth
• WINDFORCE Cooling System: Triple Hawk fans with alternate spinning, large vapor chamber, composite copper heat pipes, server-grade thermal gel, and screen cooling.
• Boost Clock: Up to 2805 MHz
• Base Clock: 2295 MHz
• Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (Supports up to 8K HDR)

Power & Efficiency

• TDP: 360W
• Single 16-pin PCIe connector
• Recommended PSU: 750W

Design & Extras

• White “ICE” colorway with RGB Halo lighting
• LCD Edge View display for real-time stats
• Dual BIOS (Performance/Silent)
• Reinforced structure + VGA support bracket
• 4-Year Warranty (with online registration)

Specifications

• GPU Architecture: NVIDIA Blackwell (GB203)
• CUDA Cores: 10,752
• Tensor Cores: 336 (5th Gen)
• Ray Tracing Cores: 84 (4th Gen)
• Memory: 16GB GDDR7
• Memory Bus: 256-bit
• Memory Speed: 30 Gbps
• Bandwidth: 960 GB/s
• PCIe Interface: PCIe 5.0 x16
• Dimensions: ~304 × 137 × 40 mm (Triple-slot)
• API Support: DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6

Why It’s a Smart Choice

• Elite Performance: Built for 4K gaming, AI workloads, and creative production.
• Next-Gen Memory: GDDR7 at 30 Gbps ensures ultra-fast data throughput.
• Advanced Cooling: Vapor chamber, Hawk fans, and screen cooling keep temps low.
• Premium Design: White ICE aesthetic with RGB Halo and LCD display.
• Creator-Ready: NVIDIA Studio support, 9th-gen NVENC, and AI-enhanced rendering.
