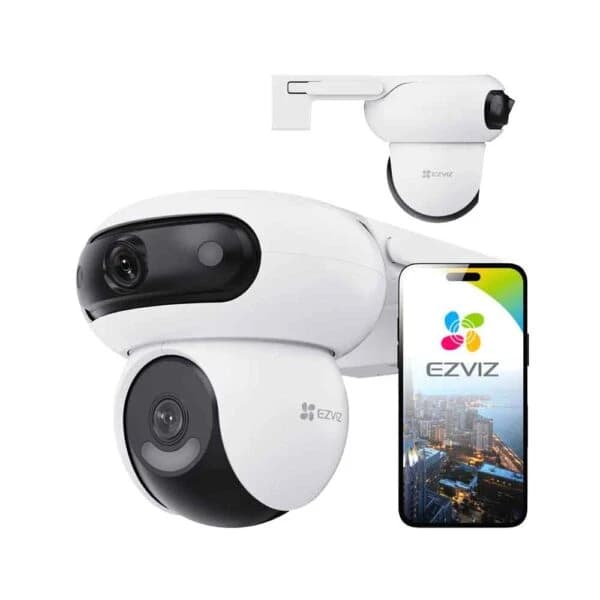

H90 Dual 2K⁺: Dual cameras, dual rotations

Specifications

• Model: CS-H90-R100-8H44WKFL

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: Self-adaptive shutter
• Top Lens: 2.8mm @ F1.6, Field of view: Diagonal 110°, Horizontal 96°, Vertical 54°
• Bottom Lens: 6mm @ F1.6, Field of view: Diagonal 60°, Horizontal 52°, Vertical 28°
• PT Angle (Top Lens): Pan: 220°, Tilt: 10° (manual adjustment for vertical angle)
• PT Angle (Bottom Lens): Pan: 324°, Tilt: 90°
• Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
• Lens Mount: M12
• Day & Night: IR-cut filter with auto switch
• DNR: 3D DNR
• WDR: Digital WDR
• IR Night Vision: 30 m (98 ft)
• Color Night Vision: Up to 40 m (131 ft) when two lenses point in the same direction

Video & Audio

• Max Resolution: 2K+ (2560 × 1440)
• Frame Rate: Self-adaptive during network transmission
• Video Compression: H.265 / H.264
• H.265 Type: Main Profile
• Video Bit Rate: Quad HD; Full HD; Standard adaptive bit rate
• Audio Bit Rate: Self-Adaptive

Network

• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20MHz
• Security: WPA-PSK/WPA2-PSK
• Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
• Wi-Fi Pairing: AP pairing
• Protocol: EZVIZ cloud proprietary protocol
• Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions

• Smart Alarm: AI-powered human shape detection, AI-powered vehicle shape detection, Motion detection
• Auto Tracking: Supports
• Customized Alert Area: Supports
• Two-way Talk: Supports
• Preset Locations: Supports
• General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

• Local Storage: Supports microSD card (max. 512 GB)
• Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required)

General

• Operating Conditions: -30°C to 50°C (-22°F to 122°F), Humidity 95% or less (non-condensing)
• IP Grade: Weatherproof Design, IP65 (withstands 2h rainstorm)
• Power Consumption: MAX. 18W
• Dimensions: 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch)
• Packaging Dimensions: 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch)
• Weight: Net weight: 723 g (25.51 oz), With Package: 1203 g (42.43 oz)

In the box

• H90 Dual 2K+ Camera
• Power Adapter
• Drill Template
• Waterproof Kit
• Screw Kit
• Regulatory Information × 2
• Quick Start Guide

Certifications

• CE / UL / WEEE / RoHS / REACH
