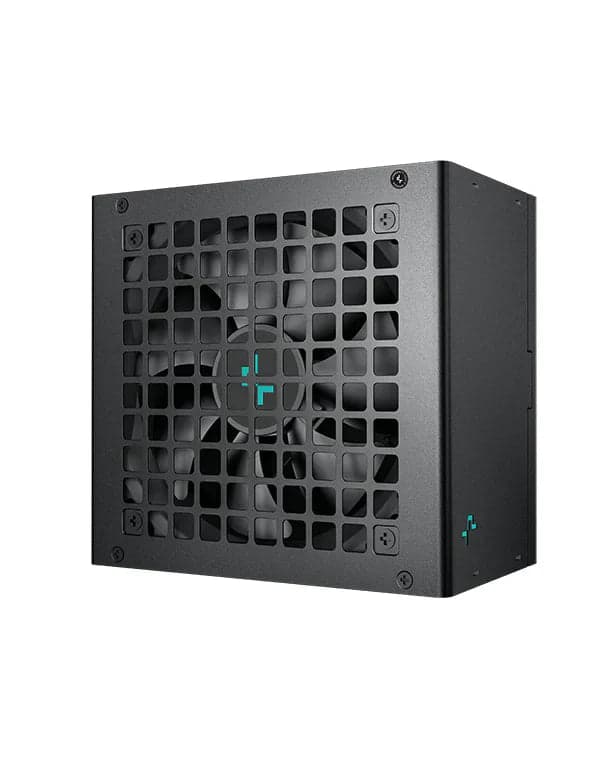

The PL800D power supply meets INTEL's latest ATX3.1 standard, capable of delivering twice the total system power for 0.1 ms, with a native PCIe 5.1 connector rated up to 450 watts.

High-grade electrolytic capacitors ensure the PSU maintains a hold-up time of ≥ 16 ms under full load. The design includes active PFC and DC to DC conversion for stable power delivery.

With three PCIe, two EPS, and a 16AWG 12V-2x6 cable, this unit is ready for both current and next-generation PCs. It's 80 PLUS Bronze certified, achieving at least 85% efficiency.

Safety features include protections such as OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.

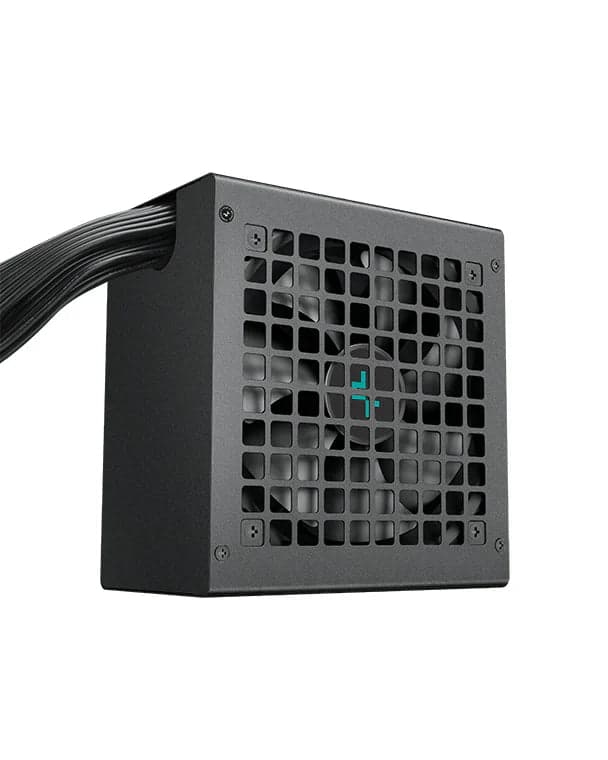

• Main Power Connector: (20+4)Pin x 1
• CPU(4+4)Pin x 1
• PCI-E(6+2)Pin x 1
• 12V-2x6(16Pin) x 1
• SATA x 4 + 4Pin Peripheral x 1

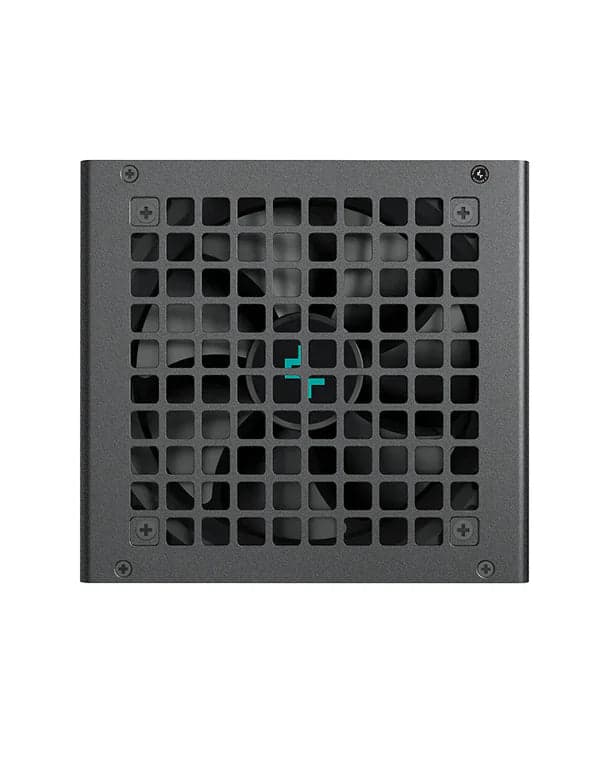

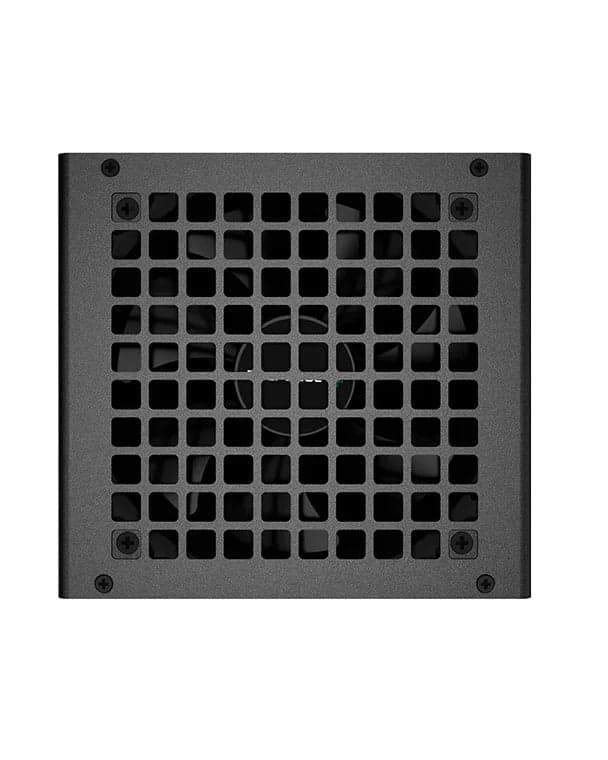

Technical specifications include dimensions of 150×140×86mm, a 120mm HYB fan, and regulatory compliance with multiple standards such as CE/FCC/CCC.
