The DeepCool PF700 Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency.

Certified for 80 PLUS 230V EU Standard efficiency, ensuring 85% efficiency under typical loading of 50%, leading to lower energy waste and temperatures.

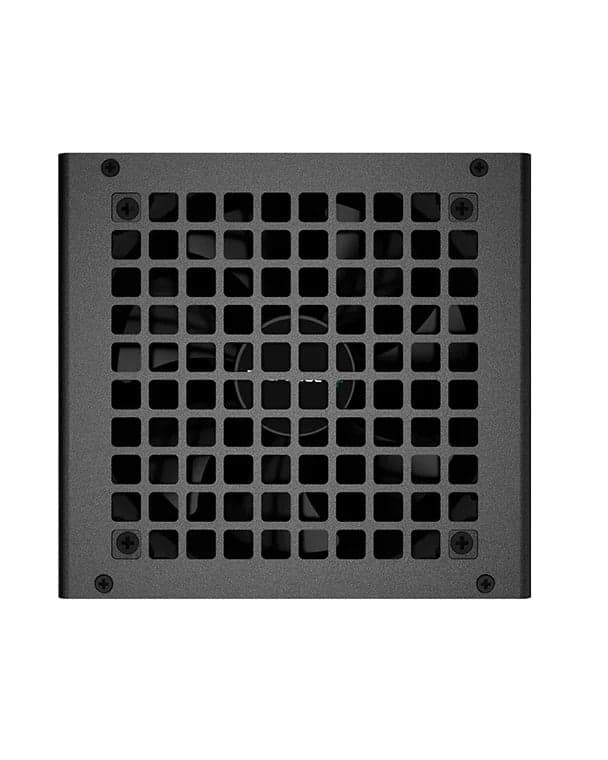

Features a 120mm fluid bearing fan for improved life expectancy with lower noise, friction, and vibration.

• Flat black cables for easy cable management.
• Protection against over power, over voltage, and short circuit.

• Main Power Connector: 24 (20+4)Pin x1
• EPS 12V Connector: 8 (4+4)Pin x2
• PCI-E (6+2)Pin x2: X2
• SATA x3, 4Pin Peripheral x1: X2

• Type: ATX12V V2.4
• Dimensions: 150×140×86mm (W x L x H)
• Fan Size: 120mm
• Topology: Active PFC+Double tube forward
• Capacitors: Taiwan bulk capacitor
• Power Good Signal: 100-500ms
• Hold Up Time: ≥12ms(75% Load)
• Efficiency: ≥85% Under Typical Load(50% Loading)
• Protection: OPP/OVP/SCP
• Operation Temperature: 0-40°C
• Regulatory: CB/CCC/CE/UKCA/EAC/RCM
• Erp Regulation: ErP 2010
• MTBF: 100,000 Hours
