Stock: In Stock Model: UA6013L Weight: 220.00g Dimensions: 19.50cm x 11.50cm x 7.70cm

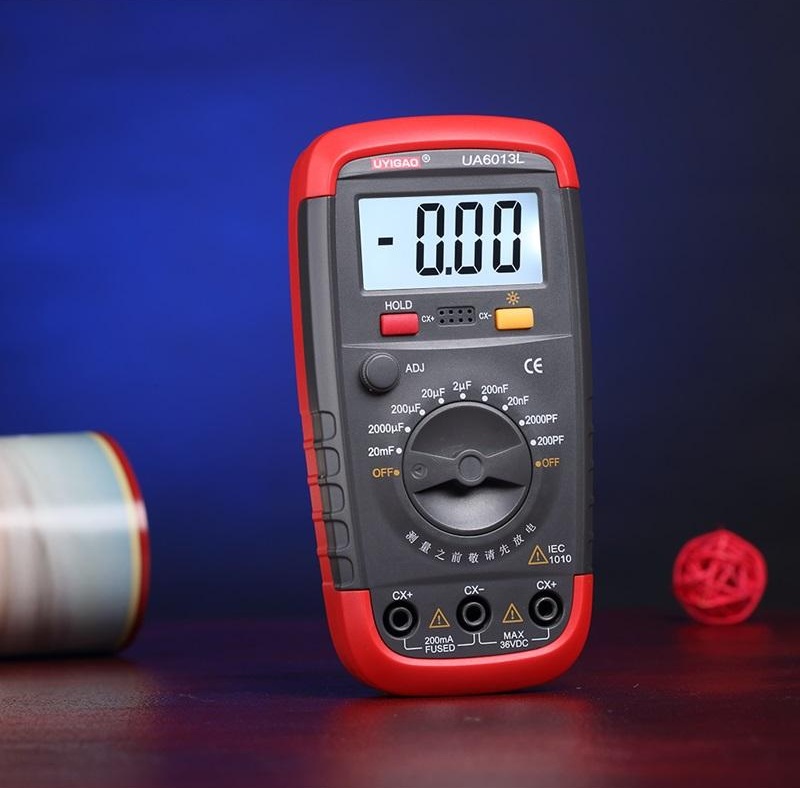

UA6013L High Precision Digital LCD Capacitor Capacitance Meter Tester. It is a professional capacitance meter with wide measuring range, stable performance, and accurate results. With large LCD display and white backlight, easy to read.

• This meter can be used to measure capacitance of cable and switch.
• Applied with CMOS double-bevel A/D convertor that is automatic in zeroing and polar selection.
• Wide measuring range, data hold function, practical.
• Large LCD display with white backlight, easy to read.
• Maximum display value: 1999(3 1/2).
• Low battery indication.
• Note: Please ensure that all measured capacitors are discharged before testing.

• Measuring Range: 200pF / 2nF / 20nF / 200nF / 2μF / 20μF / 200μF / 2000μF / 20mF
• Accuracy: ±0.5%±20digit(200pF/2nF/20nF/200nF/2μF/20μF/200μF) / ±2.0%±20digit(2000μF) / ±4.0%±20digit(20mF)
• Resolution: 0.1pF / 1pF / 10pF / 0.1nF / 1nF / 10nF / 0.1μF / 1 μF / 10μF
• Testing Frequency: 800Hz(200pF/2nF/20nF/200nF/2μF) / 80Hz(20μF) / 8Hz(200μF/2000μF/20mF)
• Power Supply: 1 * 9V Battery (not included)

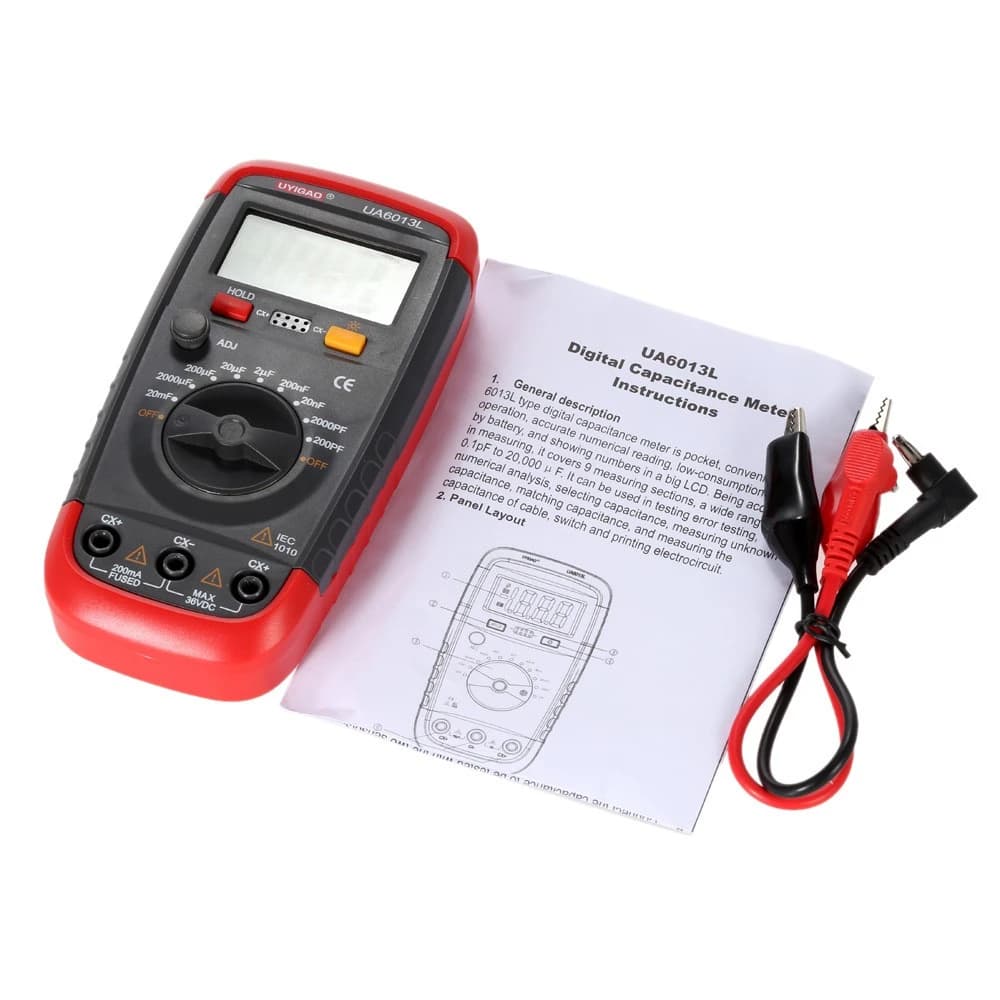

• 1 * Capacitance Meter
• 1 * Pair of Test Clip
• 1 * User Manual
