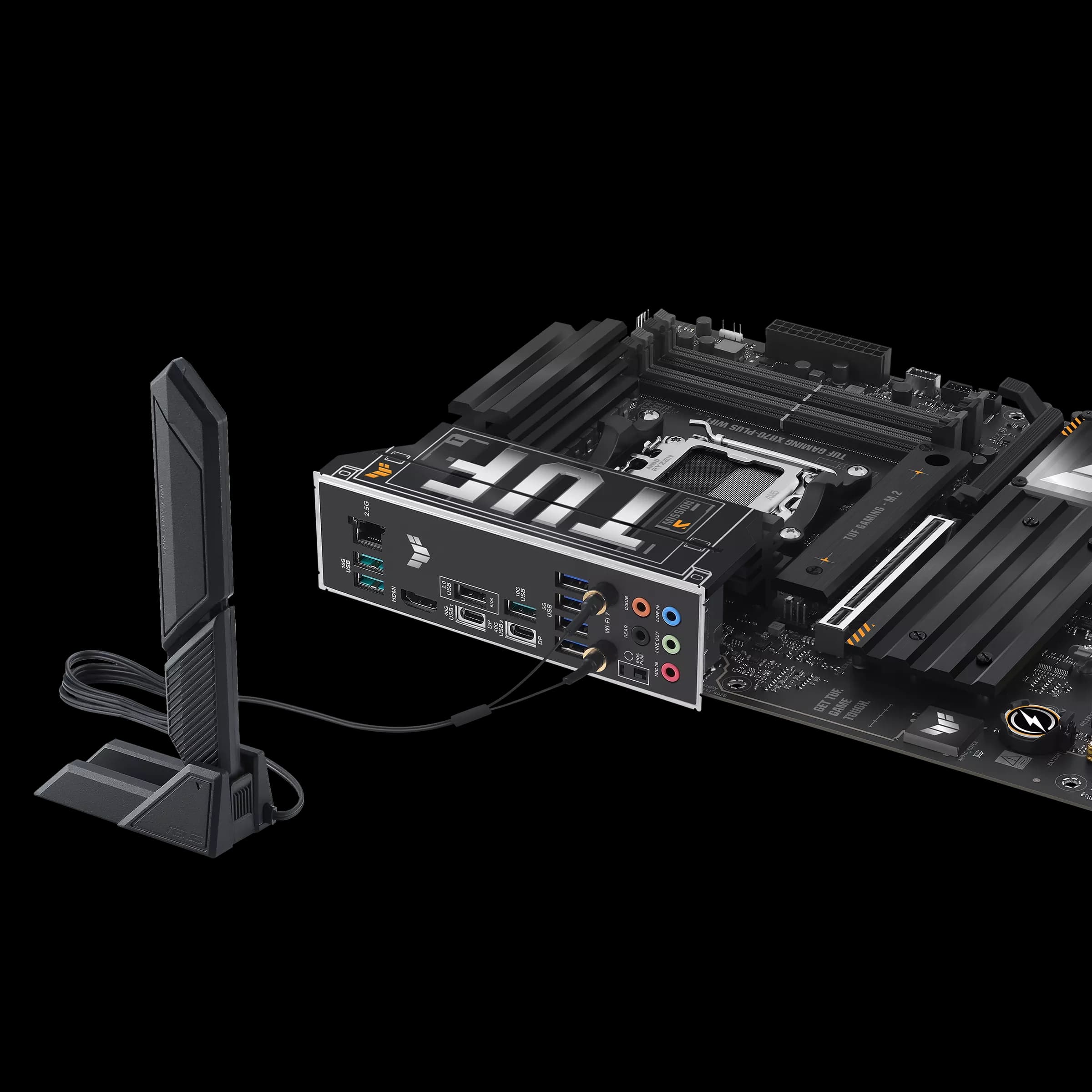

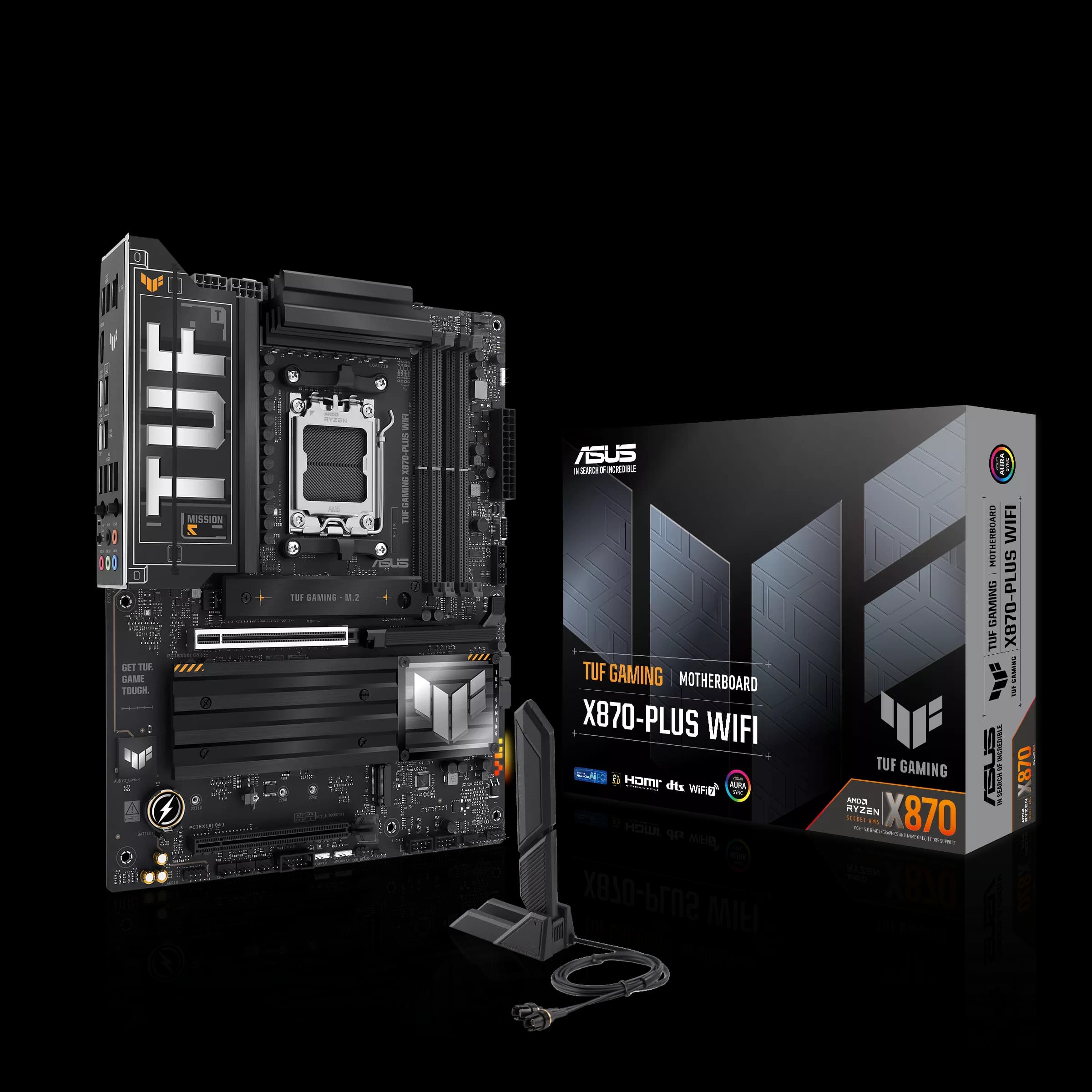

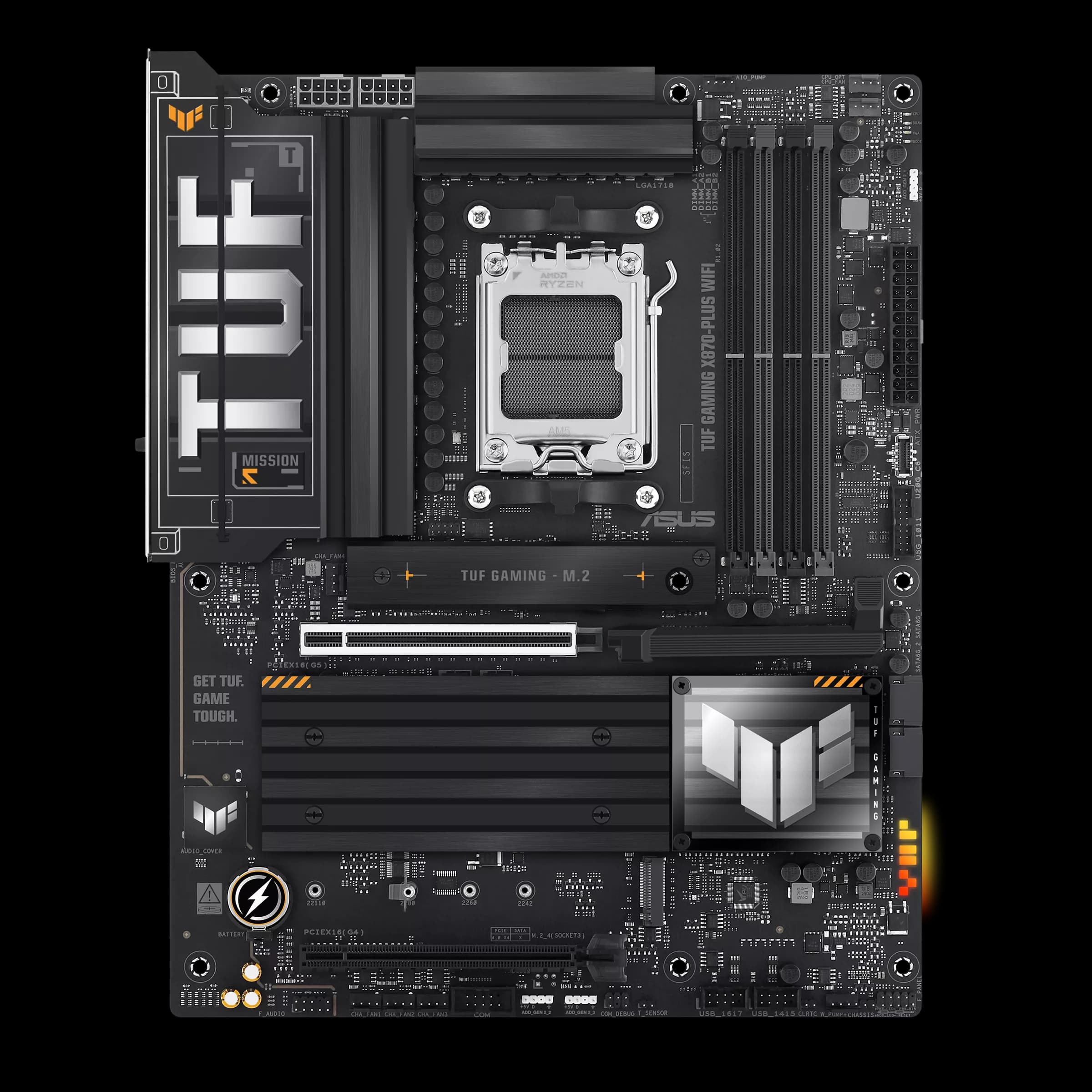

Features an AMD AM5 Socket that accommodates Ryzen™ 7000, 8000, and 9000 series desktop processors. Supports DDR5 Memory with 4 DIMM slots, allowing up to 256GB and reaching speeds of over 8000 MT/s (OC). PCIe 5.0 Expansion offers the latest bandwidth for GPUs and NVMe storage. Includes four M.2 slots (PCIe 5.0/4.0) along with SATA support. Comes with WiFi 7, 2.5Gb Ethernet, USB4 (40Gbps), USB 3.2 Gen2x2 Type‑C for connectivity. Equipped with 16+2+1 power stages with 80A VRMs to ensure stable CPU performance. Features enlarged heatsinks, SafeSlot PCIe reinforcement, and military-grade components for durability. Offers Aura Sync RGB for customizable lighting, enhancing gaming builds.

Specifications include the ASUS TUF Gaming Series model X870‑PLUS WIFI 7 with an ATX form factor and AMD X870 chipset. Uses AM5 and supports Ryzen™ 7000 / 8000 / 9000 Series CPUs. Compatible with 4 DDR5 DIMM, accommodating up to 256GB with speeds over 8000 MT/s (OC). Provides PCIe 5.0 x16 expansion via SafeSlot Q‑Release. Supports 4 M.2 (PCIe 5.0/4.0) and SATA for storage. Networking options include WiFi 7 and 2.5Gb LAN. USB ports feature USB4 (40Gbps), USB 3.2 Gen2x2 Type‑C among others. The power stages are configured at 16+2+1 (80A), with cooling provided by enlarged VRM/M.2 heatsinks and hybrid fan headers. RGB lighting is supported by ASUS Aura Sync.

Benefits include a future-proof platform ready for next-generation Ryzen CPUs and PCIe 5.0 devices. High-speed connectivity is assured with WiFi 7 and USB4 enabling advanced networking and transfer speeds. Stable power delivery is maintained by a robust VRM design, ensuring reliable performance even for high-TDP CPUs. The system promises gaming durability with military-grade components and reinforced slots built to last. Customization options are enhanced by Aura Sync RGB lighting, which integrates seamlessly with gaming setups.
